100-06100102

100-06100102 Series 100
Email to a Friend

Series 100

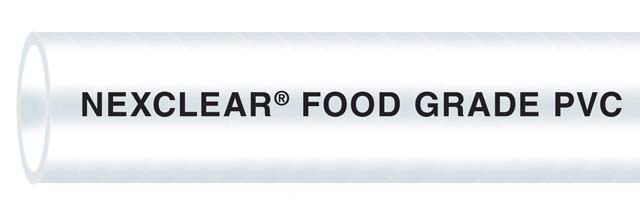

NEXCLEAR Clear PVC Tubing FDA, NSF 51, USP Class VI

$0.78

Sales Pricing Unit: FT
Part #: 100-06100102
Manufacturer: Parker
Availability: (190)  In Stock
Normally ships in 1-2 days

QTY:

100-06100102 Series 100
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

Series 100 is flexible PVC tubing for beverages and potable water, non-fatty and non-oily foods and sanitary products. The tubing features a smooth interior that is abrasion resistant and will not impart taste or odor, and allows full-flow. The clear PVC construction permits visual observation of materials being conveyed. Series 100 also provides excellent general industrial service for low pressure air, distilled water, drain, laboratory, light vacuum, wine and wire harness applications.

Specifications

  • ID (in): 3/8
  • ID (mm): 9.5
  • OD (in): 5/8
  • OD (mm): 15.9
  • Approx Wt (lbs/ft): 0.11
  • Approx Wt (kg/ft): 0.05
  • Std Pack Qty (ft): 100
  • Wall (in): 0.125
  • Wall (mm): 3.2
  • Max Rec WP @ 68°F(psi): 55
  • Max Rec WP @ 20°C (bar): 3.8

Part Number Tags

  • N/A

Related Documents:

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. - www.p65warnings.ca.gov
