25-210-30-INH2O

25-210-30-INH2O 200 Series
Email to a Friend

200 Series

Low Pressure Diaphragm

$48.88

Sales Pricing Unit: EA
Part #: 25-210-30-INH2O
Manufacturer: Parker
Availability: (0)  Out of Stock
Click HERE to request lead time

QTY:

25-210-30-INH2O 200 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

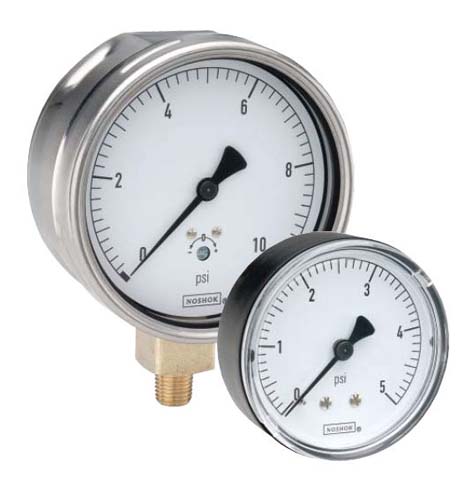

Sensitive capsule-type, non-fillable dry gauge. Vacuum ranges through 0 psi to 10 psi. 2-1/2" and 4" gauge sizes. Black painted steel, stainless steel and impact-resistant ABS case. Copper alloy and brass wetted parts.

Specifications

  • Lens: Acrylic
  • Accuracy: ±1.6% full scale
  • Case: Black painted steel
  • Connection: 1/4'' NPT, brass
  • Movement: Brass and nickel-silver with highly polished bearing surfaces
  • Pointer: Black finished aluminum
  • Dial: Aluminum, white background with black scale. UV resistant
  • Case Types: 210 - Steel, back connection
  • Pressure Ranges: 30 inH2O - 0 inH2O to 30 inH2O
  • Gauge Sizes: 25 - 2-1/2''
  • Temperature ranges*: Media -4 °F to 140 °F (-20 °C to 60 °C)|Ambient 0 °F to 140 °F (-18 °C to 60 °C)
  • Measuring element: Copper alloy diaphragm capsule

Part Number Tags

  • N/A

Related Documents:
