25-300-1500-PSI

25-300-1500-PSI 300 Series
Email to a Friend

300 Series

Brass Case, Liquid Filled

$78.07

Sales Pricing Unit: EA
Part #: 25-300-1500-PSI
Manufacturer: Noshok
Availability: (6)  In Stock
Normally ships in 1-2 days

QTY:

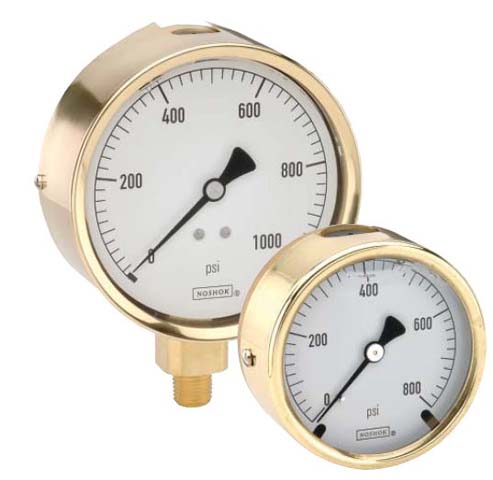

25-300-1500-PSI 300 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

High quality, heavy-duty liquid filled gauge. Vacuum and compound ranges through 0 psi to 15,000 psi. 2-1/2" and 4" gauge sizes. Die cast brass case with natural brass finish. Copper alloy or 316 stainless steel and brass wetted parts.

Specifications

  • Lens: Acrylic with o-ring seal
  • Accuracy: ±1.6% full scale
  • Case: Die cast brass (natural brass finish) with safety relief plug
  • Connection: 1/4'' NPT die-cast brass with the case. 7/16'' – 20 SAE adjustable type straight thread with FKM O-ring is also available as a stock option on many ranges (-4 SAE).
  • Movement: Brass and nickel-silver with highly polished bearing surfaces.
  • Pointer: Balanced aluminum, black finish
  • Dial: Aluminum, white background with black scale. UV resistant.
  • Case Types: 300 - Brass, bottom connection
  • Pressure Ranges: 1500 - 0 psi to 1,500 psi
  • Scale Options: psi - psi single scale
  • Cover ring: Polished brass
  • Gauge Sizes: 25 - 2-1/2''
  • Temperature ranges*: Media -4 °F to 140 °F (-20 °C to 60 °C)|Ambient 0 °F to 160 °F (-18 °C to 71 °C)|Optional temperature ratings available from -40 °F to 212 °F (-40 °C to 100 °C)
  • Measuring element: Copper alloy coiled safety tube
  • Fill liquid**: Glycerine
  • Fill Liquid: Glycerine
