38906

38906 Series 389
Email to a Friend

Series 389

Barrier Fuel Line Hose CARB/SORE; EPA; SAE J30R7/30R14T2

$1.92

Sales Pricing Unit: FT
Part #: 38906
Manufacturer: Parker
Availability: (51)  In Stock
Normally ships in 1-2 days

QTY:

38906 Series 389
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

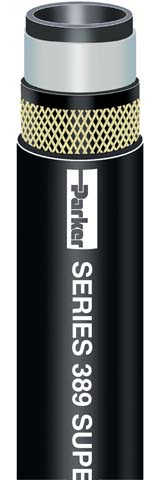

Series 389 is a fuel line/vapor emission hose for refined fuels such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol and gasoline. The hose incorporates a THV barrier to resist permeation, multiple aramid plies of reinforcement for coupling retention, durability and kink resistance, and the cover is resistant to abrasion, oil and weathering. The hose is flexible for easy routing in and around small engines and small engine compartments. Series 389 surpasses all of the California Air Resource Board (CARB)/Small Off-Road Engine (SORE) and Environmental Protection Agency (EPA) stringent permeation requirements of 15g/m2/day. It also meets or exceeds SAE J30R7 and SAE J30R14T2 specifications, and is compatible with Parker SAE J2044 and J2045 Push-to-Connect fittings.

Specifications

  • ID (in): 3/8
  • ID (mm): 9.8
  • Reinf Plies: 2
  • OD (in): 0.625
  • OD (mm): 15.8
  • Approx Wt (lbs/ft): 0.12
  • Approx Wt (kg/ft): 0.05
  • Min Bend Rad (in): 2.5
  • Min Bend Rad (mm): 63.5
  • Max Rec WP (psi): 50
  • Max Rec WP (bar): 3.4
  • Perm Cplg Rec *: HY
  • Std Pack Qty (ft): 250

Part Number Tags

  • N/A
