7165-50250

7165-50250 Series 7165
Email to a Friend

Series 7165

WAVEMASTER Marine Barrier Fuel Line / Vent Hose ABYC, CARB, CE, EPA, ISO, NMMA, SAE, USCG

$3.66

Sales Pricing Unit: FT
Part #: 7165-50250
Manufacturer: Parker
Availability: (462)  In Stock
Normally ships in 1-2 days

QTY:

7165-50250 Series 7165
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

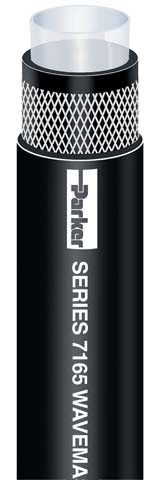

Series 7165 is a premium, low permeation fuel tank feed and vent hose for refined fuels such as biodiesel (to B100 in dedicated and non-dedicated service), alcohol blended fuels, diesel, ethanol and gasoline in marine applications. The hose incorporates a thermoplastic barrier to resist fuel permeation and the cover is resistant to abrasion, oil and weathering. Series 7165 is flexible for easy routing in engine compartments and as a feed line to fuel tanks where liquid fuel is continuously in the hose under normal conditions.

Specifications

  • ID (in): 1/2
  • ID (mm): 12.7
  • Reinf Plies: 2
  • OD (in): 0.821
  • OD (mm): 20.9
  • Approx Wt (lbs/ft): 0.20
  • Approx Wt (kg/ft): 0.09
  • Min Bend Rad (in): 4.5
  • Min Bend Rad (mm): 114.3
  • Max Rec WP (psi): 100
  • Max Rec WP (bar): 7.0
  • Perm Cplg Rec *: *
  • Std Pack Qty (ft): 250

Part Number Tags

  • N/A
