7395-2500025

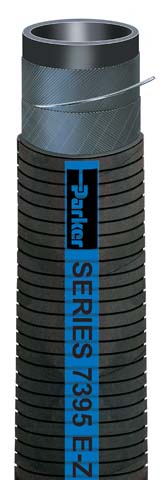

7395-2500025 Series 7395
Email to a Friend

Series 7395

E-Z FORM GS General Service Hose SAE J20R2-D1 Performance

$28.38

Sales Pricing Unit: FT
Part #: 7395-2500025
Manufacturer: Parker
Availability: (327)  In Stock
Normally ships in 1-2 days

QTY:

7395-2500025 Series 7395
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

Series 7395 is an extremely flexible, lightweight low pressure hose designed to handle air, coolant, mild chemicals and water. The hose construction incorporates a tube that is resistant to commonly used coolant mixtures, a wire helix that provides full suction/vacuum capability and a path to conduct a static electrical charge to ground, and a cover that is resistant to abrasion, mild chemicals, heat and ozone. The unique Greek cover corrugations are tightly pitched and precision-engineered, providing minimal force-to-bend, superior kink resistance, and maximum flexibility for ease of handling. Series 7395 is capable of being routed through confined spaces where formed hose might normally be required.

Specifications

  • ID (in): 2-1/2
  • ID (mm): 63.5
  • Reinf Plies: 2
  • OD (in): 3.012
  • OD (mm): 76.5
  • Approx Wt (lbs/ft): 1.17
  • Approx Wt (kg/ft): 0.53
  • Min Bend Rad (in): 8.7
  • Min Bend Rad (mm): 2210.
  • Max Rec WP (psi): 75
  • Max Rec WP (bar): 5.2
  • Perm Cplg Rec *: *
  • Std Pack Qty (ft): 25

Part Number Tags

  • N/A
