P1C-4NMF

P1C-4NMF Foot Bracket MS1
Email to a Friend

Foot Bracket MS1

Air Cylinders P1D Series

$28.27

Sales Pricing Unit: EA
Part #: P1C-4NMF
Manufacturer: Parker
Availability: (0)  Out of Stock
Click HERE to request lead time

QTY:

P1C-4NMF Foot Bracket MS1
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Product Details

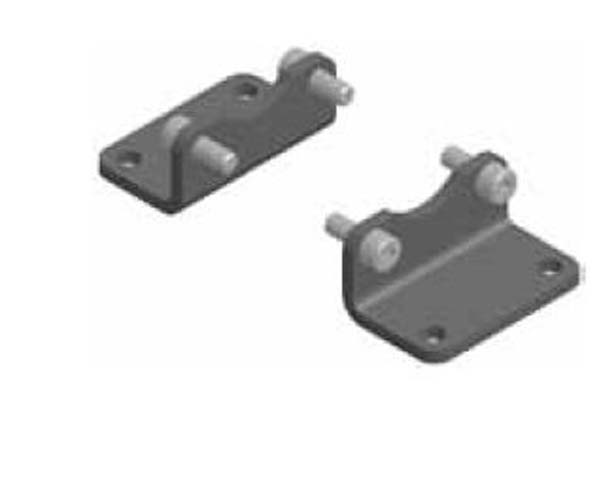

Intended for fixed mounting of cylinder. Foot bracket can be fitted to front and rear end covers of cylinder.

Series Details



Specifications

  • E mm: 75
  • Bore mm: 63
  • Weight* kg: 0.25
  • AB H14 mm: 9
  • TG1 mm: 56.5
  • TR JS14 mm: 50
  • AO mm: 13
  • AU mm: 32
  • AH JS15 mm: 50
  • I7 mm: 35
  • AT mm: 5.5
  • I9 JS14 mm: 27.5
  • SA mm: 185
  • Note: *Weight per item

Part Number Tags

  • N/A
