P1C-4SRS

P1C-4SRS Cylinder mountings
Email to a Friend

Cylinder mountings

Mountings

$782.86

Sales Pricing Unit: EA
Part #: P1C-4SRS
Manufacturer: Parker
Availability: (0)  Out of Stock
Click HERE to request lead time

QTY:

P1C-4SRS Cylinder mountings
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Product Details

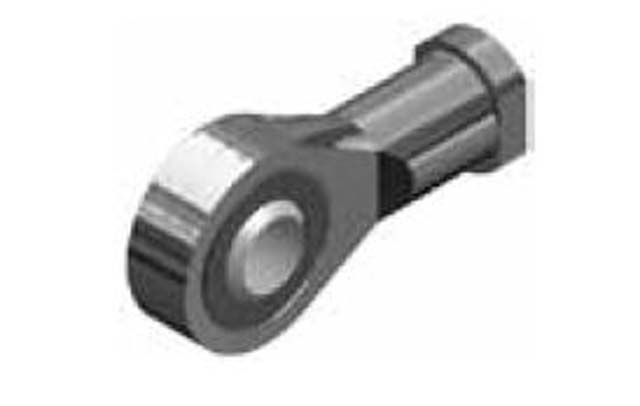

Type: Swivel rod eye
Description: Swivel rod eye for articulated mounting of cylinder. Swivel rod eye can be combined with clevis bracket GA. Maintenance-free.
Cyl. bore Ø mm: 160|200
Weight kg: 2,00
Material: Swivel rod eye: Zinc-plated steel. Swivel bearing according to DIN 648K: Hardened steel
A mm: 56
B min mm: 139
B max mm: 161
CE mm: 125
CN H9 mm: 35
EN h12 mm: 43
ER mm: 40
KK: M36x2
LE min mm: 41
N mm: 14
O mm: 28
Z mm: 15°

Series Details



Specifications

  • Description: Swivel rod eye for articulated mounting of cylinder. Swivel rod eye can be combined with clevis bracket GA. Maintenance-free.
  • A mm: 56
  • Weight kg: 2,00
  • KK: M36x2
  • CE mm: 125
  • N mm: 14
  • B min mm: 139
  • B max mm: 161
  • CN H9 mm: 35
  • EN h12 mm: 43
  • ER mm: 40
  • LE min mm: 41
  • O mm: 28
  • Types: Swivel rod eye
  • Cyl. bore Ø mm: 160|200
  • Z mm: 15°

Part Number Tags

  • N/A

Related Documents:
