SWC609-3000

SWC609-3000 Series SWC609
Email to a Friend

Series SWC609

Titanflex Corrugated Tank Truck Hose

$20.75

Sales Pricing Unit: FT
Part #: SWC609-3000
Manufacturer: Parker
Availability: (200)  In Stock
Normally ships in 1-2 days

QTY:

SWC609-3000 Series SWC609
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
Email to a Friend

Tracking

Series Details

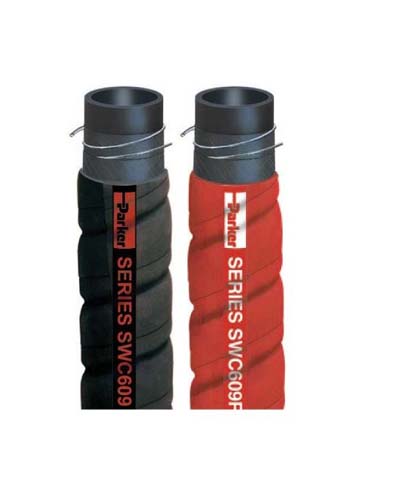

Series SWC609 is an extremely flexible, high pressure suction and discharge hose designed to handle oil and refined fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and gasoline. The corrugated hose construction incorporates a dual wire helix that provides full suction capability, superior kink resistance, minimal force-to bend and a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, oil and weathering.

Specifications

  • ID (in): 3
  • ID (mm): 76.2
  • OD (in): 3.580
  • OD (mm): 90.9
  • Approx Wt (lbs/ft): 1.70
  • Approx Wt (kg/ft): 0.77
  • Min Bend Rad (in): 3.0
  • Min Bend Rad (mm): 76.2
  • Max Rec WP (psi): 200
  • Max Rec WP (bar): 13.8
  • Std Pack Qty (ft): 100
  • Perm Cplg Rec: *
  • Reinf Piles: 2

Part Number Tags

  • N/A

Related Documents:

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. - www.p65warnings.ca.gov
