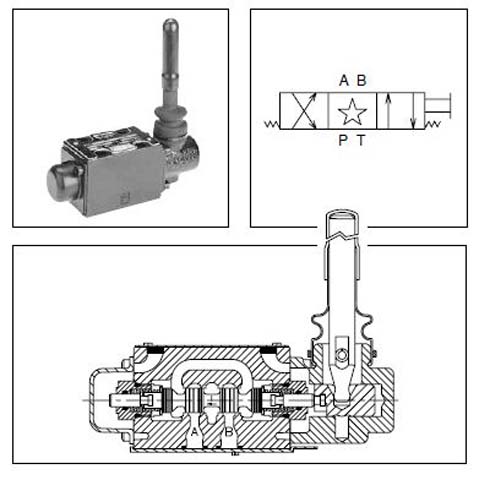

D1VL008NN
Series D1VL
Directional Control Valves Series D1VL
$796.02
Sales Pricing Unit: EAPart #: D1VL008NN
Manufacturer: Parker
Availability: (5) In Stock
Normally ships in 1-2 days
QTY:
* ACTUAL PRODUCT MAY DIFFER FROM SHOWN IMAGE - IT IS THE BUYER'S RESPONSIBILITY TO VERIFY PRODUCT SPECIFICATIONS/DETAILS BEFORE PURCHASE.
Tracking
Series Details
Series D1VL directional control valves are highperformance, 4-chamber, direct operated, lever controlled, 4-way valves. They are available in 2 or 3-position and conform to NFPA’s D03, CETOP 3 mounting patterns. Features: Spring return or detent styles available. Heavy duty handle design.
Specifications
- Style: N - Three position, detent
- Seal: N - Nitrile
- Maximum Flow: See Reference Data
- Valve Weight: 1.60 kg (3.5 lbs.)
- Mounting Pattern: NFPA D03, CETOP 3, NG 6
- Operator Type and Location: L - Lever (Standard)
- Force Required to Shift Lever Operator: 25 N (5.6 lbs)
- Basic valve: 1V - NFPA D03 CETOP 3
- Maximum pressure: Operating: 345 Bar (5000 PSI)|Tank Line: 34 Bar (500 PSI)
- Directional Control Valve: D
- Variations: Omit - Standard
- Spool: 008*
Part Number Tags
- 1VL8NN
